Featured Equipment

MAKE AN OFFER



Equipment and listing information expressed herein are stated to the best of our knowledge and should be verified for complete accuracy.

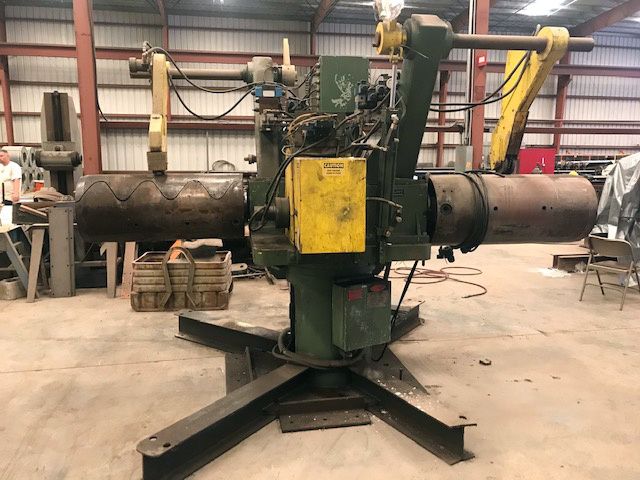

Double Turn Style


Year: 1997
Details: MANUFACTURED BY BRADBURY, CAPACITY BELIEVED TO BE 10 TONS PER SIDE, THIS IS SURPLUS TO
THE LINE PURCHASED AND WAS NEVER INSTALLED AT DEAN.


Camber Corrector by Bradbury

Make: BRADBURY
Details: Camber Corrector by Bradbury

Purlin Line Press

Less Dies


Rated Capacity: 97 TON AT 5/16″ ABDC
152 TON AT 1/8″ ABDC
214 TON AT 1/16″
Bed Size: 24″ x 73″
Ram Size: 24″ x 73″
Stroke: 2″
Cycles: 60/MIN WITH A 10 CYCLES/7 SEC MAX OVER CYCLE AT 1 MIN INTERVALS
HP 75-HP MOTOR
Shut Height: ADJUSTABLE FROM 11 1/2 TO 20″
Details: 150 TON UNDERDRIVEN MECHANICAL PRESS

Cut to Length Slitter

Click image below to zoom.

Year: 1984
Make: #54521 STAMCO – SLITTING LINE
Large Leveler: 20,000 LBS.
Small Leveler: 12,000 LBS.
Motor Leveler: 3,000 LBS.
Motor Leveler: 2,500 LBS.
Shear: 15,000 LBS.
Uncoiler: 17,000 LBS.
Hold-Down: 11,000 LBS.
Uncoiler: 17,000 LBS.
Coil Car: 7,000 LBS.
Elect Panel: 2,000 LBS.
Table: 5,000 LBS.
Table 1,500 LBS.
Table: 300 LBS.
Oper, Console: 200 LBS.
Transformer: 700 LBS.
2 Cascade Rolls: 1,000 LBS.
Entry Roll: 4,000 LBS.
Hyd Stand: 1,000 LBS.
Hyd Unit: 1,500 LBS.
Scrap Winder: 600 LBS.
Feeder: 23,500 LBS.

Purlin Line Press

Less Dies

Rated Capacity: 50 TON AT 5/16″ ABDC
80 TON AT 1/8″ ABDC
100 TON AT 1/16″ ABDC
Bed Size: 25″ X 71″
Ram Size: 25″ X 71″
Stroke: 2″
Cycles: 60/MIN WITH A 10 CYCLES/7 SEC MAX OVER CYCLE AT 1 MIN INTERVALS
HP: 30/MAX SLIP 4%
Shut Height: ADJUSTABLE FROM 11 1/2 TO 18 1/2
Details: 80 TON UNDERDRIVEN MECHANICAL PRESS

American Hercules 5/8 Shear X 12′


Chicago #810-C 75 Ton X 10′



Niagara # HD-200D
